LNSTANTLY SPARK
Functional Features
·Combining explosive sound and rapid spray effect, instantly spraying dazzling starlight effects
·Automatic inflation, no need for external inflation
IPX3 waterproof rating, can be used normally even in rainy weather
·All stainless steel shell, sturdy and durable without rusting
·3-core/5-core dual DMX waterproof interface, compatible with any DMX console
·Provide Chinese and English menus for more user-friendly operation
·Controllable table programming with multiple effects
Technical Parameter
|
product name |
Instantaneous Star Fire Machine |
|
Scope of use |
Indoor and outdoor |
|
Use voltage |
AC100-240V |
|
power |
1000W |
|
control mode |
DMX512 |
|
External dimensions |
36CM * 33CM * 36CM（Excluding nozzle） |
|
Net weight (without fuel) |
16.3KG |
|
Storage bin capacity |
300g |
|
Heating method |
electromagnetic heating |
|
Consumable consumption |
Approximately 8g per round |
|
Spray angle |
Vertical upward |
|
spray height |
8-10 meters |
|
Shell material |
stainless steel |

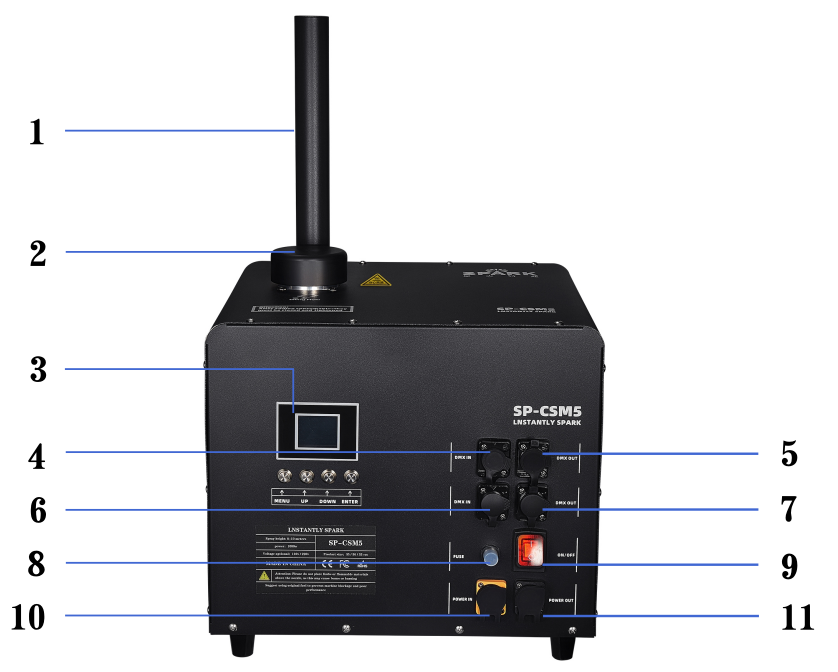

Electric control surface
- 1. Spray nozzle
- 2. Storage bin cover
- 3. Display screen
- 4. 5-Core DMX512 signal input
- 5. 5-Core DMX512 signal output
- 6. 3-Core DMX512 signal input
- 7. 3-Core DMX512 signal output
- 8. Insurance
- 9. Power switch
- 10. Power input
- 11. Power output

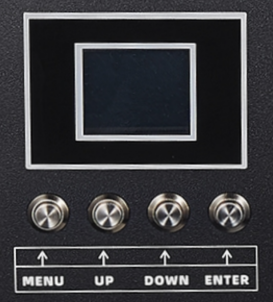

Key function
“MENU”：menu
“UP”：＋
“DOWN”：－
“ENTER”：confirm
DMX console control: There is a total of 1 channel
Channel 1：Spray (2.5 seconds later)
LCD display operation panel
Quick operation instructions
- 1、Install the machine horizontally only on the ground or a sturdy support, and ensure that the machine is securely installed
2、Plug in the power and signal cables, turn on the machine, and it will automatically preheat and pressurize
3、Add an appropriate amount of consumables and cover with a lid
4、Install the nozzle properly
5、Adjust the address code and connect to the DMX console
6、After the display screen shows "Ready", Channel 1 of the console can control the spraying
7、After use, spray the remaining powder from the silo until there are no fireworks spraying out
After the machine cools down, remove the spray nozzle, unplug the power and signal wires, wipe off any water stains and dust on the surface of the machine, and pack it in the factory provided cardboard or aviation box to prevent collision
Maintenance
- 1、It is recommended to have the equipment run at least once a month to maintain optimal performance and equipment condition
2、After use, spray the consumables in the equipment silo clean. Water should not enter the silo, otherwise it will damage the internal parts
3、When not in use, the lid of the silo should be covered and placed in a cool and dry place. It should not be damp or exposed to direct sunlight. It is recommended to use the cardboard box (aviation box) from the factory for packaging
4、The fuel tank should be kept dry at all times, and there should be no dust, leaves or other debris entering. Except for special consumables, there should be no liquid or debris in the tank
5、When not in use, consumables should not remain in the silo for a long time, as this can cause powder clumping and blockage
Warranty Statement
Sincere thanks for choosing this product. You will receive high-quality after-sales service
The warranty period for this product is one year. If there is a quality issue within seven days of leaving the factory, our company can guarantee a replacement of the same model of product
During the warranty period, if the hardware malfunction is caused by the product itself, our company will provide free repair services for customers. Please do not disassemble and repair it yourself
·The following are not covered by the warranty：
Improper handling, use, management, maintenance or human damage
Unauthorized disassembly, modification, or repair
External factors (lightning strikes, water immersion, etc.)
Damage caused by incorrect installation or use
·If not covered by the warranty, repair service will be charged
