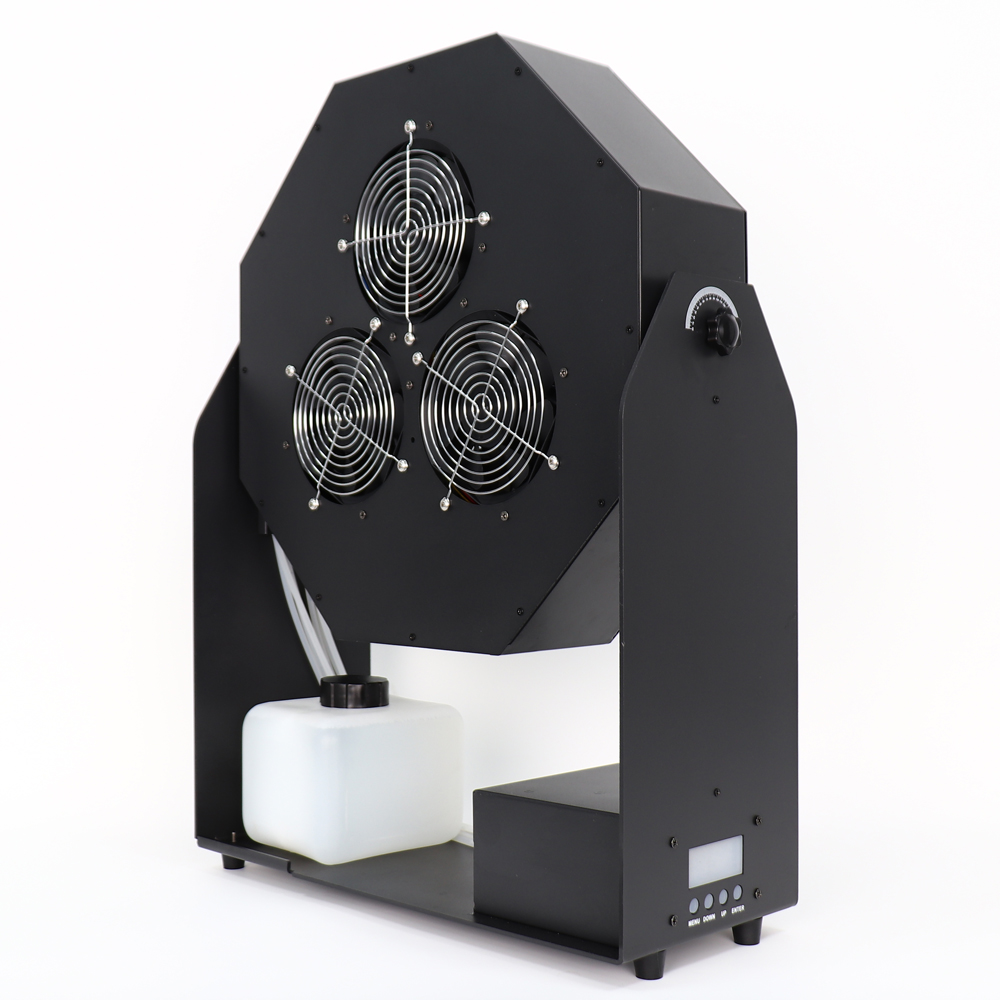

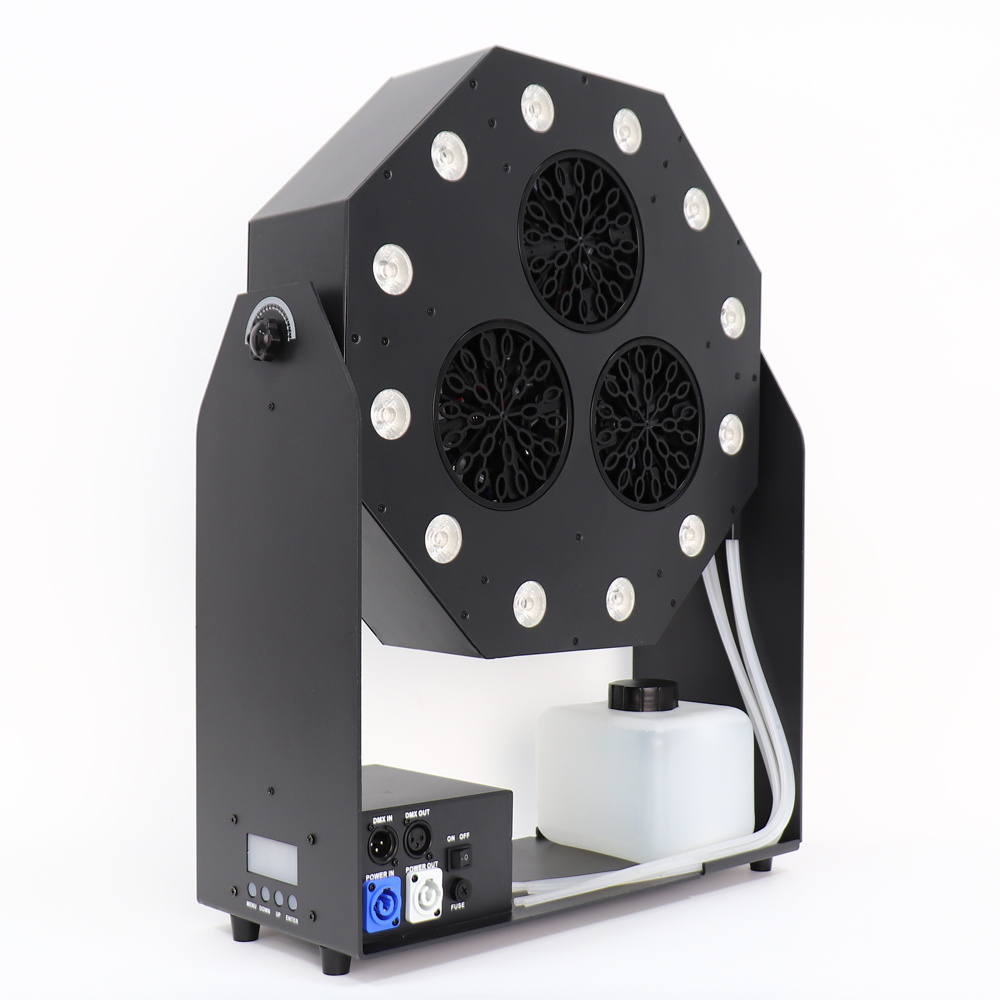

Topflashstar New Large 120W DMX Bubble Maker Automatic Rotation RGBW 12pcs LED Bubble Machine Professional for Kids, Weddings, Birthday Parties, Outdoor Activities
Product Features
1.Small size and easy to use.
2.The bubble angle can be adjusted at multiple angles.
3.The indoor height can reach 16 meters, and the outdoor range can
reach 600 square meters.
4;6unit of led lights with RGBW colour can render various effects of colorful bubbles.
5.The bubble output is 3000 bubbles per second, quickly covering the
space to reach the bubble world.
6.Please use the original professional bubble water, otherwise the above
effect cannot be achieved.
Precautions for use
1. Do not rotate 360°
2. The turntable speed cannot be adjusted too fast, otherwise there will be no bubbles
3. The water pump speed should not exceed 200, otherwise it will leak
4. Do not turn on the light for more than 30 minutes without turning on the fan
5. The oil-to-water ratio is 1:2 to 1:6. Under normal circumstances, the optimal
ratio is 1:2. The higher the wind force, the higher the concentration required.
6.Compatible with all bubble oils, adjust the airflow to match different bubble oil
concentrations.
Technical Parameters
|
Model |
HC001 |
|
AC voltage |
110v-240v 50/60Hz |
|
Power |
120w |
|
Light source |
LED 8W RGBW |
|
Control |
DMX512 remote control |
|
DMX channel |
6 channels |
|
Spray angle |
180° |
|
Height |
16 meters |
|
Water tank capacity |
5.8 liters Use time 55 minutes |
|
Material |
All aluminum alloy |
|
Net weight |
7 kg |
|
Gross weight |
9kg |
|
Machine size |
44.5*41.5*60CM |
|
Packing size |
52*23.5*70.5CM |
|
One package, two sizes |
54*50*73CM |
1.Button
Button from left to right： Menu Minus Plus Enter
Corresponding silk screen:MENU DOWN UP ENTER
Note:
C000 interface is the remote control interface
E000 is the gear interface
d000 interface is the console control interface
d000 interface, press and hold the ENTER interface for three seconds to enter the pumping speed adjustment interface and the speed adjustment interface
P000 interface is for pumping speed setting
S000 interface is for adjusting the turntable speed
Menu
(1) d001 console address code; Range: 001-512; Press the plus and minus keys to modify, press the confirm key to save
(2) E000 wind speed mid-range and high-range E000-E001
(3) C000 remote control interface light switch C000-C018
(3) P000 pumping speed adjustment 001-255
(4) S000 turntable speed adjustment 001-255
2.Romote control
A: Start high wind speed
B: Medium wind speed
C: Switch Lights
D: Off
3.Channel
|
Channel |
Value |
Function |
|
1CH |
0-9 |
Off |
|
9-255 |
The wind is getting stronger | |
|
2CH |
0-255 |
Turn on the LED at different colors |
|
3CH |
0-255 |
Red |
|
4CH |
0-255 |
Green |
|
5CH |
0-255 |
Blue |
|
6CH |
0-255 |
Amber Yellow |
