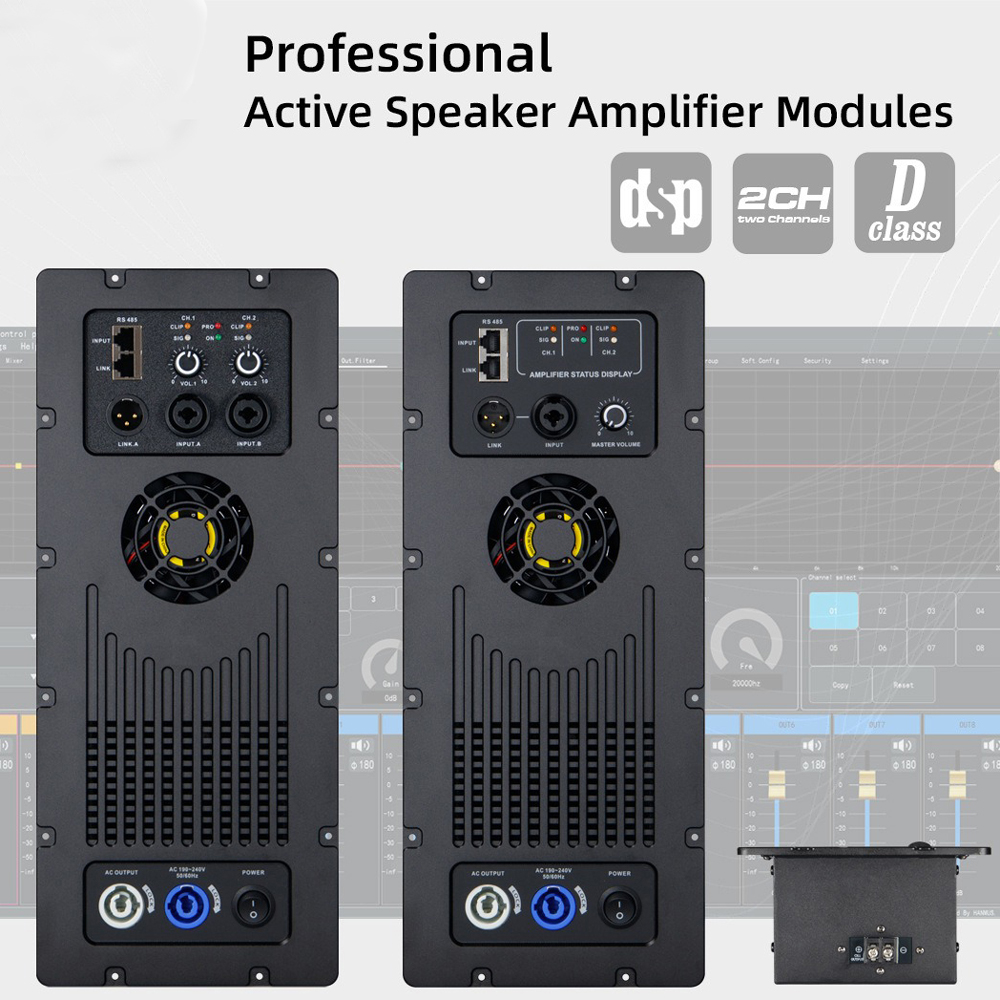

Professional 2*1000W Class D DSP Amplifier Module Dual Channel Power Amplifier Module Active Audio Equipment Sound Amp Metal Board for Active Speaker & Subwoofer

1.Two input two output professional DSP processing, high audio frequency sampling rate, 48K/24BIT

(Cirrus Logic c-ccz) audio frequency sampling;

2.Based on hardware floating-point processor, ultra-low Round trip latency, smooth operation;

3.Powerful and simple DSP editing function, can make professional debugging of sound effects

pression;

4.Analog audio channel adopts real full differential transmission, with strong common mode sup-

5.RS485 centralized control interface, cooperate with the USBBRIDGE independently developed by our

company for control debugging work, To enhance the efficiency and convenience of your work;

works at a lower temperature;

6.High efficiency radiator, intelligent variable speed cooling fan, to ensure that the power amplifier

7.High power digital amplifier circuit, up to 90% conversion efficiency;

8.Signal light, limiting light, protection light, indicating the status of the power amplifier;

9. Perfect protection: including on/off impact, DC, output short circuit, temperature protection;

10.Mature and stable output circuit

45*30*18cm  5.5kg

 210USD
